Filling line for CSD in PET bottles with capacity 14 000 bph for 1.5 L and 2.0 L. SIDEL year 2004
SKU: 11102019
Filling line for CSD in PET bottles with capacity 14 000 bph for 1.5 L and 2.0 L.
Line is in a perfect working condition and still in operation. On request we can arrange line inspection on requested time and date.
Output of the line is 14 000 PET bottles per hour, based on the formats: 1,5 liters, and 2,0-liter PET as a main set, with specified PCO 1881 short neck with 28 mm diameter.
Techninė informacija
- Line capacity: 14 000 bph for 1.5 liter 14 000 bph for 2.0 liter
- Bottle sizes: 1.5 liter / 2.0-liter PET
- Status of the line: Still in operation until January 2020
- Used for filling: CSD
- Cap type: PCO 28 mm (1881 Short neck)
- Packages: Shrink pack, Euro palette with tray
- Conditions: Good, regularly serviced

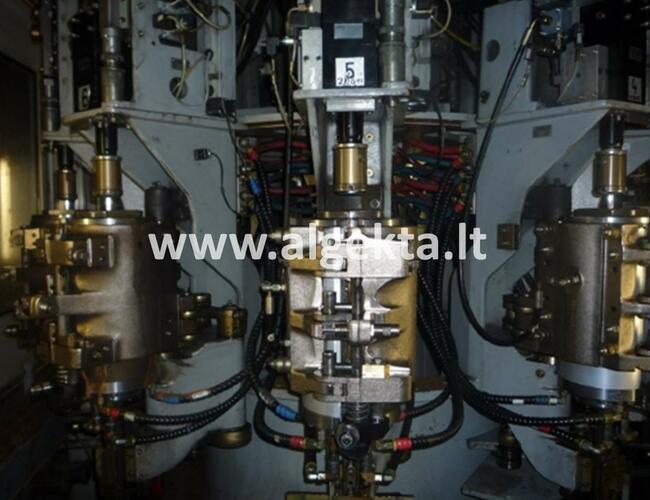

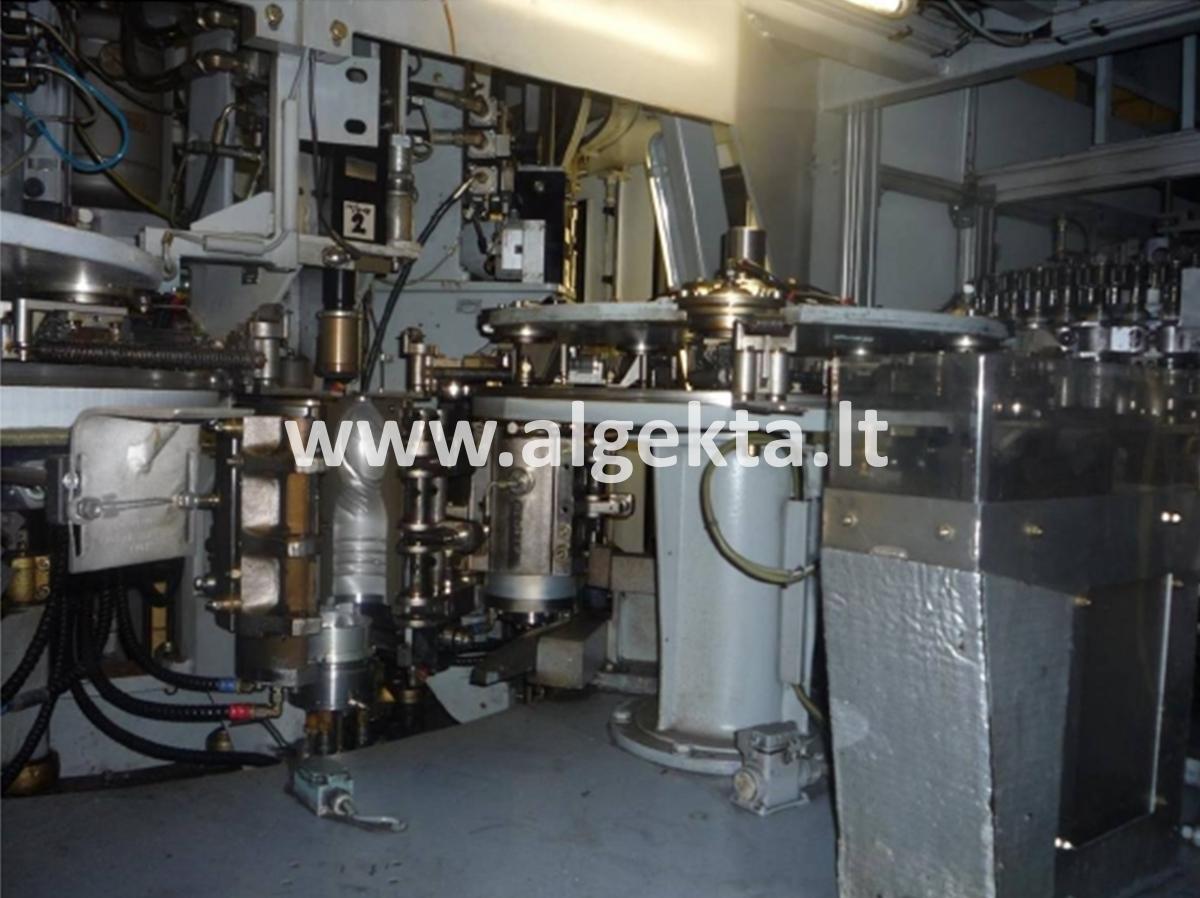

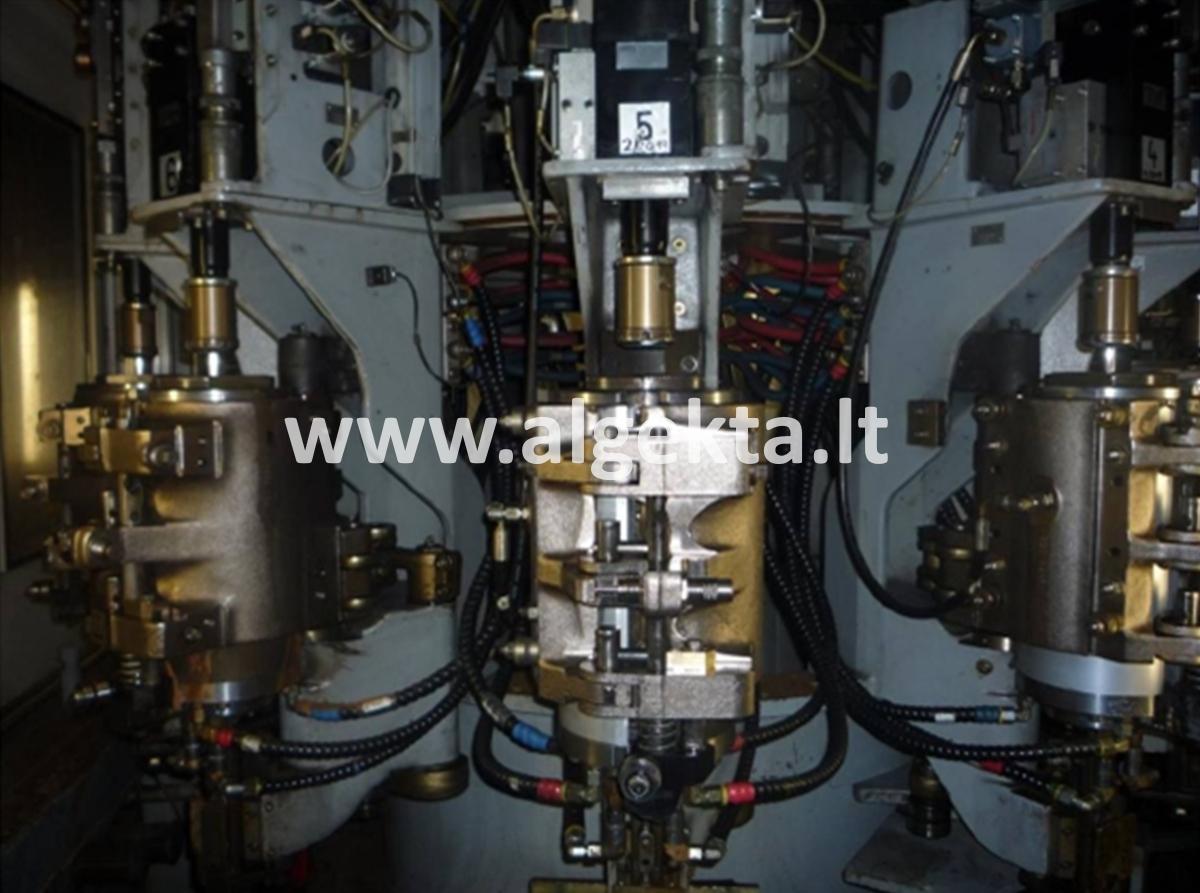

Blow molding machine:
- Manufacturer: SIDEL
- Type: SBO 10 ROUE
- Manufacturing year: 2004
- Bottle formats: 1.5 liter / 2- liter PET
- Forms included: Yes (1.5 L and 2.0 L)
- Other remarks: Chiller included, preforms hopper and feeder included.
Rinser – Filler – Capper:
- Manufacturer: SIDEL
- Type: RV.P60/80.10KAOR
- Year: 2004
- Bottle formats: 1.5 liter / 2 – liter PET
- Number of filling positions: 60
- Number of filling valves: 80
- Number of capping heads: 10
- Capper: AROL
- Cap type: PCO 28 mm (1881 Short neck)
Mixer:
- Manufacturer: MORAVEC
- Type: MIX 360CE/1
- Year: 2004
- Capacity: 40 000 L per hour
Labeling machine:
- Manufacturer: SIDEL
- Type: ROLLQUATTRO F15 18T/R/HH3 S1/E1 DX
- Year: 2008
- Number of labeling stations: 1 station, Hot Melt
- Label material: OPP
- Label positions: Wrap around
Date coder:
- Manufacturer: VIDEOJET
- Type: 1520
- Year: 2015
Shrink wrapper:
- Manufacturer: SMI
- Type: SK 450F
- Year: 2004
- Try possibility: No
- Format: 2×3
Carry handle applicator:
- Manufacturer: CEFMA
- Type: CH120
- Year: 2005
Conveyor systems:
- Air conveyors: approx. 90 m
- Bottle conveyors: approx. 100 m
- Pack conveyors: approx. 48 m
- Pallet wrapper: NOT INCLUDED
- Palletizer: NOT INCLUDED
